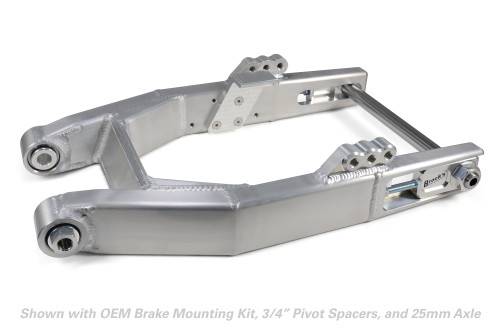

Brocks Performance Dyna Swingarm (Burnished) for Harley-Davidson Dyna (00-17)
Brocks Performance Dyna Swingarm (Burnished) for Harley-Davidson Dyna (00-17) - Image 1 of 0
Brocks Performance Dyna Swingarm (Burnished) for Harley-Davidson Dyna (00-17) - Image 2 of 0
Brocks Performance Dyna Swingarm (Burnished) for Harley-Davidson Dyna (00-17) - Image 3 of 0
Brocks Performance Dyna Swingarm (Burnished) for Harley-Davidson Dyna (00-17) - Image 1 of 0
Brocks Performance Dyna Swingarm (Burnished) for Harley-Davidson Dyna (00-17) - Image 2 of 0
Brocks Performance Dyna Swingarm (Burnished) for Harley-Davidson Dyna (00-17) - Image 3 of 0
Brocks Performance Dyna Swingarm (Burnished) for Harley-Davidson Dyna (00-17) - Image 4 of 0
Brocks Performance Dyna Swingarm (Burnished) for Harley-Davidson Dyna (00-17) - Image 1 of 0
Brocks Performance Dyna Swingarm (Burnished) for Harley-Davidson Dyna (00-17) - Image 2 of 0
Brocks Performance Dyna Swingarm (Burnished) for Harley-Davidson Dyna (00-17) - Image 3 of 0
Brocks Performance Dyna Swingarm (Burnished) for Harley-Davidson Dyna (00-17) - Image 4 of 0
Brocks Performance Dyna Swingarm (Burnished) for Harley-Davidson Dyna (00-17) - Image 5 of 0

Brocks Performance Dyna Swingarm (Burnished) for Harley-Davidson Dyna (00-17)

$
Sale Price: $1,322.90
You save $!
Product Code: 604387
Choose your options:
Axle Size(required):
Pivot Spacer Size(required):
Brake Mounting Kit(required):
Add Swingarm Chain Guard Kit:
Add Delrin Chain Slider Kit:
Brocks Performance Dyna Swingarm (Burnished) for Harley-Davidson Dyna (00-17)
  • Handcrafted 6061-T6 aluminum extended swingarm
  • Proprietary custom extrusion made exclusively for Brock's Performance
  • Extends wheelbase from stock to 3 inches over
  • 3-position shock mounts allow flexibility in ride height (stock, -1", -2")
  • Designed for use in high-power, high-torque applications
  • Includes centerless ground 4130 Chromoly axle
    (choose from 3/4", 25mm, 1", or 28mm axles)
  • Reversible billet aluminum axle adjusters for easy wheel adjustments
  • Select from one of two caliper mounting options:
    • Undermount - For Aftermarket Calipers
    • OEM - For using the OEM Dyna Caliper and Mount
      (select the correct axle size for your caliper mount)
  • PTFE® lined spherical bearings from Worldwide Bearings preinstalled
  • Select bushing size for the model year Dyna:
    • 11/16" - Model Years 2000-2005
    • 3/4" - Model Years 2006-2017
  • Interior swingarm width measures 10 5/8" at the axle
  • The total weight of swingarm, hardware, and axle is 14.78 lb. (6.70 kg)
    (see the 'Technical' tab for details)
  • Designed, machined, and assembled in the USA
  • Burnished raw aluminum finish
  • See 'Technical' tab for installation information
  • Click here to view installation information
  • Click here to view pivot bolt stack-up engineered drawing
  • Overall hub width is critical for proper operation/handling, see 'Technical' tab for important information regarding installation

Attention: When spacing Dyna rear wheel, the overall width including spacers, brake hanger, etc. Must be: 10.625 in +.020in/-.000in / (269.88mm +.50mm/-.00mm)

Overall hub width is critical for proper operation/handling, product longevity, and rider safety. Brock's Performance will not warranty any damaged swingarm found not to be in compliance with these spacing guidelines.


Performance Dyna Swingarm Weight:

  • Swingarm w/ Bearings: 10.90 lb. (4.94 kg)
  • Axle w/ Nuts & Blocks:
    • 3/4" - 2.85 lb. (1.29 kg)
    • 25mm - 3.15 lb. (1.43 kg)
    • 1" - 3.20 lb. (1.45 kg)
    • 28mm - 3.40 lb. (1.54 kg)
  • Pivot Bushings:
    • 5/8" - 0.40 lb. (0.18 kg)
    • 3/4" - 0.43 lb. (0.20 kg)
  • Caliper Mounting Hardware:
    • OEM Mount - 0.60 lb. (0.27 kg)
    • Undermount Kit - 0.80 lb. (0.36 kg)

Total Performance Dyna Swingarm Weight with OEM Caliper Mount, 3/4" Axle, and 3/4" Pivot Bushings: 14.78 lb. (6.70 kg)


Installation Information:

  • Not a 100% bolt-on application
  • Performance swingarms are wider than OEM to accommodate wider rear tires, an offset sprocket/pulley may be required and/or modification of the rear wheel carrier
    (for BST wheels low profile sprocket carriers are available)
  • Fabrication of wheel and/or shocks spacers required
  • For modified bikes, Brock's Performance recommends the 3/4" pivot shaft which may require modification of the transmission case
  • When using the 3/4" axle in high power applications, we suggest a wheel configuration that utilizes a double row bearing (or outboard bearing) on the sprocket/pulley side

What do you get when you combine 25 years of sportbike drag racing and innovation with a V-Twin industry cry for a swingarm that can handle the ever-increasing demands of ultra-powerful Dyna's? Introducing the Performance Dyna Swingarm™, by Brock's Performance. Leaning heavily on technology proven in the 'stupid fast' turbocharged sportbike area, our tubing, bracing, billet aluminum ends and Chromoly axles routinely control 750 hp/350 ft-lb no wheelie bar missiles in 6 second/220MPH action.

Adapting this winning combination for smooth operation and long street life for your Dyna, we installed replaceable PTFE® lined spherical bearings from Worldwide Bearings at the pivot loops. Adding a bit of flexibility to the stance and chassis tunability in the rear, billet 3-position shock mounts (1/2-13 thread) are standard allowing for stock height, -1", and -2" mounting positions. Speaking of flexibility, check out the brake mounting options to run the OEM caliper and mount or your favorite aftermarket caliper.

Don't forget the extra 3 inches in length can be worth as much as 3 tenths improvement in the 1/4 mile. The bottom line, weighing in at a little over 1/2 the weight of the OEM swingarm and built to handle as much power as you can throw at it, moving/bent axles can now be a thing of the past, and you can look great and go faster too.

Note: Performance Dyna Swingarms are not designed for off-road use.
