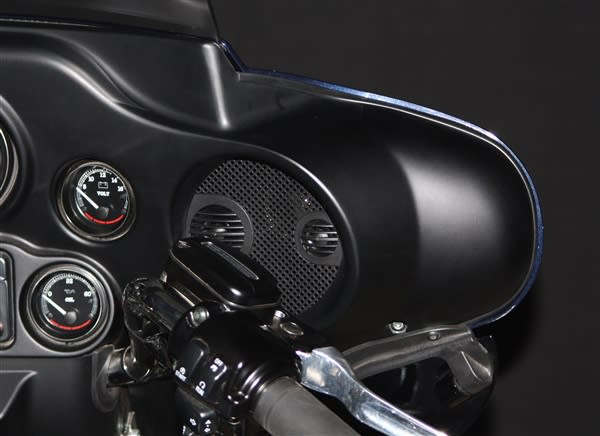

J&Ms new 7 round drivers are the largest diameter speakers that
can be installed into the Harley BatWing style fairing, with cone volume
and mass comparable to a 6X9 speaker.
J&M's 5 " round drivers are the largest & most efficient
speakers you can install into the rear trunk pod position on the Harley
Ultra.
Both specd at 2 ohms impedance and 140/120+ watts max power, these new
speakers provide the ultimate in bass response, extended mid/high
frequency range and raw audio power.
They feature a waterproof injection-molded polycarbonate woofer cone,
high-flux strength but light-weight dual-donut Neodymium magnet, high
efficiency voice coil, the latest design grillwork with mounted tweeter
and midrange, and top-quality adapter rings/bracket hardware for secure
and clean mounting into the UltraClassic ElectraGlide.
These are THE most efficient speakers you can buy for your Harley and
their mounting hole pattern and spade electrical connections are exactly
the same as the factory specification.
This exciting new J&M 4-channel 360w fairing/rear speaker amplifier
kit has been design specifically for use in the 2006-2013 Harley
UltraClassic ElectraGlide fairing with the Harley HK radio.
This is a full range class D amplifier and is specd at 90watts RMS per
channel X4 channels, (360w total) driven continuous into a 2 ohm load @
14.4vdc.
Amplifier mounts to the top of the custom made stainless steel bracket
system, which has the slots in the bottom section to properly relocate 2
of the Harley CB, MP3 or XM sat radio modules, if installed.
Amplifier gain adjustments are factory preset for this 4 speaker configuration on the Harley Ultra.
Custom made plug-n-play wiring harnesses are included with this
amplifier kit, top quality heavy gauge power/ground wires are used for
the fused battery connection, along with all necessary mounting hardware
& complete installation/operation instructions.
Amplifier itself measures 7 1/4" X 4 X 1 .
|
|
|
 |
|
 |
|
